RFID Inlay – High-Performance Smart Tag Solutions

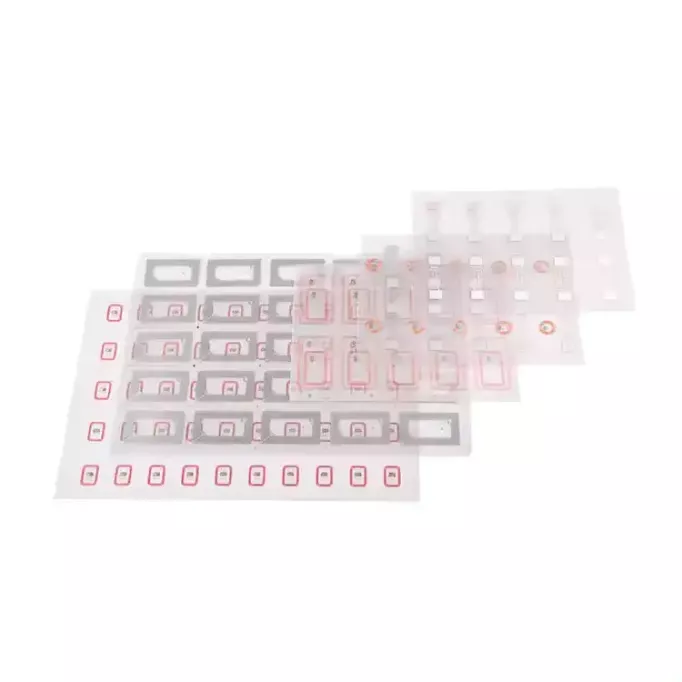

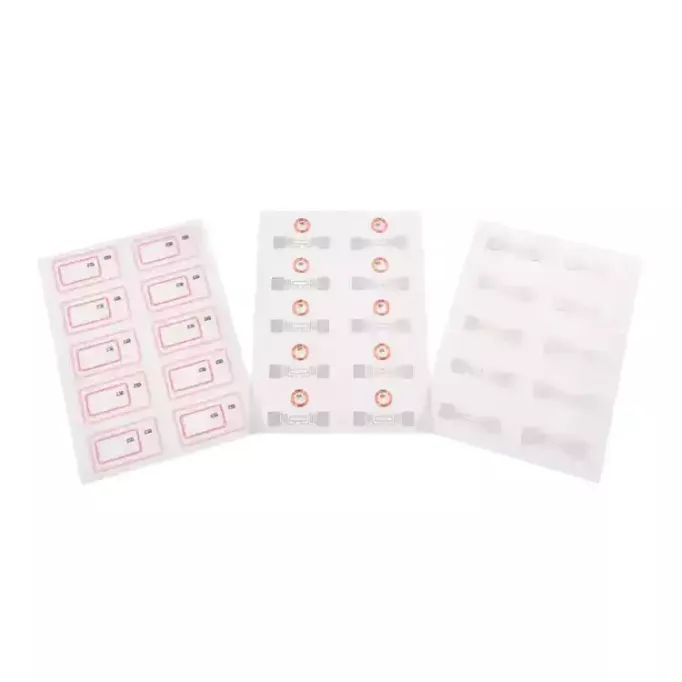

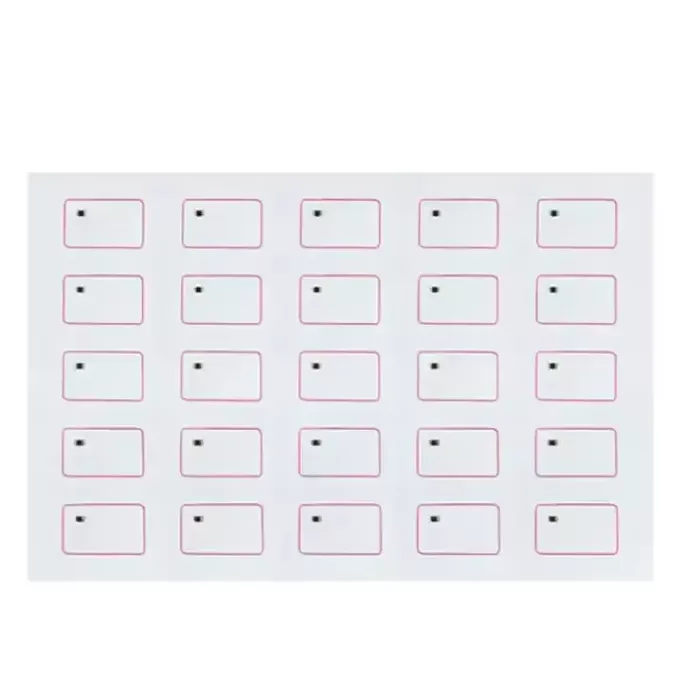

An RFID Inlay is the core component of an RFID tag, consisting of a microchip and an antenna embedded on a thin substrate. RFID inlays are widely used for smart cards, labels, asset tracking, access control, inventory management, and supply chain applications. They provide reliable, contactless communication with RFID readers and can be fully customized to suit various operational needs.

Key Features

• High Performance: Efficient antenna design ensures stable communication and extended read range.

• Multiple Frequencies: Available in LF (125/134 kHz), HF (13.56 MHz), and UHF (860–960 MHz) options.

• Customizable Form Factor: Can be embedded in cards, labels, wristbands, tickets, or tags.

• Durable & Flexible: Thin substrate allows embedding without affecting the card or label structure.

• Reliable Communication: Supports high-speed data transfer and secure identification.

• Cost-Effective: Ideal for large-scale deployment in retail, logistics, and events.

Specifications (Example)

• Chip Type: Various options including NXP, Alien, Impinj, EM, TI

• Frequency: LF (125/134 kHz), HF (13.56 MHz), UHF (860–960 MHz)

• Antenna Material: Aluminum or copper foil

• Substrate Material: PET or paper

• Thickness: 0.1–0.3 mm (depending on type)

• Dimensions: Customizable for card, ticket, label, or wristband applications

• Read Range: 1 cm – 10 m depending on frequency and reader

Note: Specifications vary based on chip model, antenna design, and application environment.

Applications

• Smart Cards: Access control cards, ID cards, transit cards

• Asset & Inventory Tracking: Warehouse, logistics, and supply chain management

• Event Tickets & Wristbands: Concerts, sports events, exhibitions

• Retail & Loyalty Programs: Anti-counterfeit tags, membership cards, loyalty cards

• Library & Healthcare Systems: Book tracking, medical equipment, patient cards

• Custom Tags & Labels: For marketing, product authentication, or industrial use

Advantages

• Contactless operation for fast and hygienic scanning

• High read/write speed and data security

• Compatible with multiple RFID standards (ISO 14443, ISO 15693, EPC Gen2)

• Flexible design for embedding in various products

• Scalable for small or large production runs

FAQ

Q1: What is an RFID inlay?
An RFID inlay is the central component of an RFID tag, including a microchip and antenna on a thin substrate, which enables contactless communication with RFID readers.

Q2: Can RFID inlays be used in cards or labels?

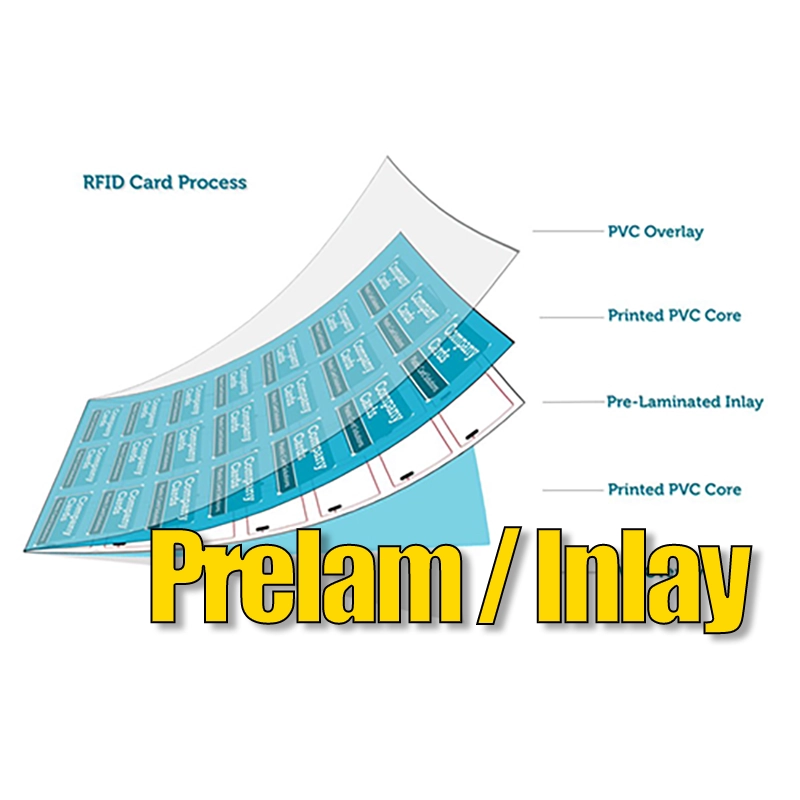

Yes, they can be embedded in PVC or paper cards, stickers, tickets, or other substrates.

Q3: What frequencies are available?
RFID inlays are available in LF (125/134 kHz), HF (13.56 MHz), and UHF (860–960 MHz).

Q4: Are RFID inlays customizable?
Yes, size, shape, chip type, antenna design, and substrate can all be customized according to application requirements.

Q5: What are common applications of RFID inlays?
Access control, ID cards, inventory management, event tickets, loyalty programs, retail anti-counterfeit, library management, and healthcare systems.
