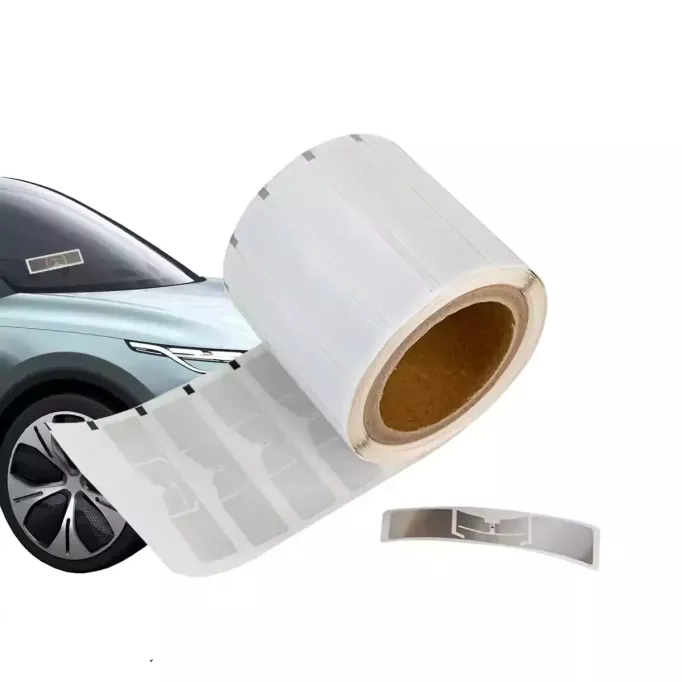

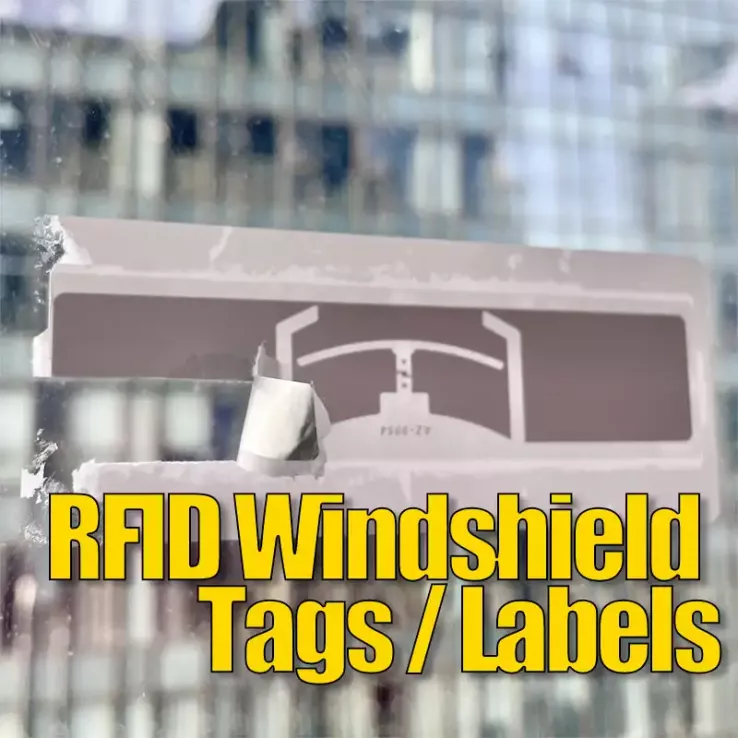

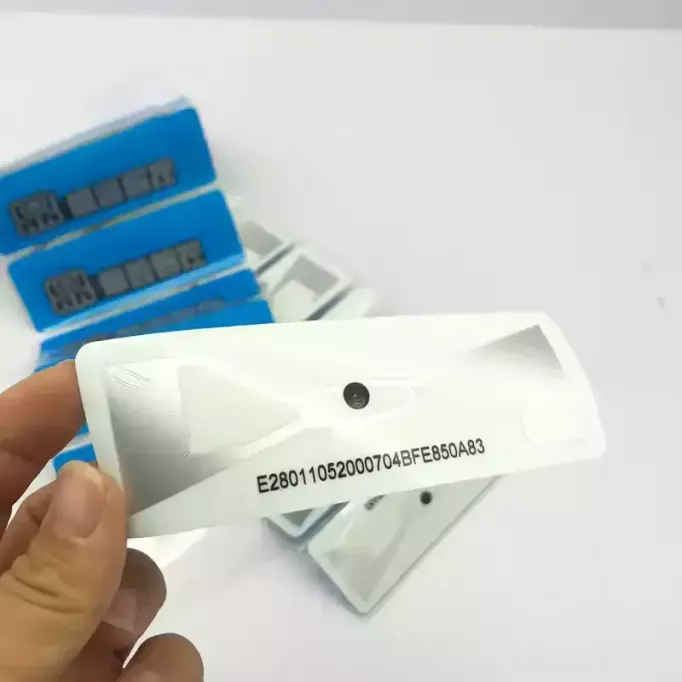

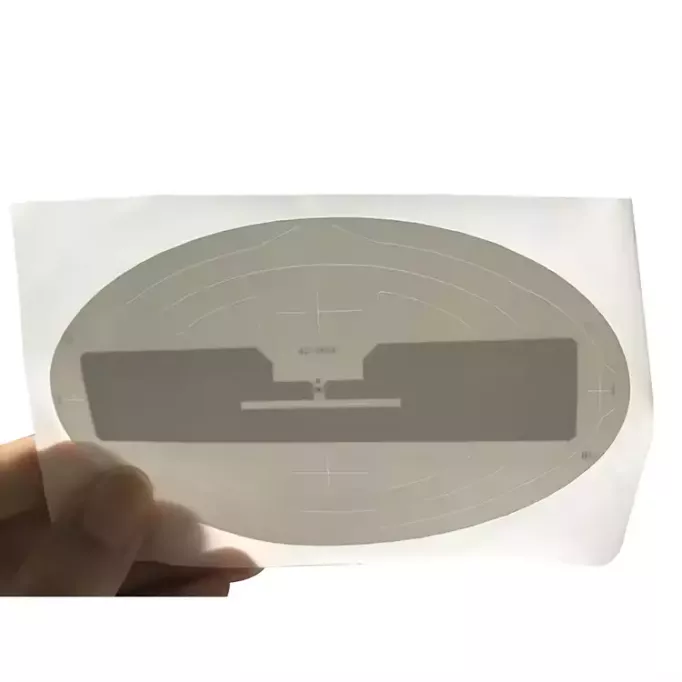

RFID Windshield Tag / Label for Cars
RFID UHF Windshield tag, RFID HF Windshield tag
Product Overview
Our RFID windshield tags and labels are high-performance, passive RFID solutions designed for vehicle identification, parking access control, toll collection, and fleet management. Available in UHF and HF versions, these tags offer long read ranges, tamper-resistant adhesion, and customizable printing and encoding options.
Key Features
High Performance: Reliable read/write performance in various environments.
Frequency Options: UHF (860–960 MHz) or HF (13.56 MHz).
Tamper Resistant: Irreversible if removed, ensuring security.
Customizable: Logo printing, barcode, chip type, and unique ID encoding.
Durable Materials: PET, adhesive paper, or environmentally friendly options.
Wide Compatibility: Works with standard ISO/IEC 18000-6C (UHF) and ISO14443A (HF) protocols.
Product Specifications
Product Name: RFID Windshield Tag / Label
Frequency: UHF: 860–960 MHz / HF: 13.56 MHz
Protocol: ISO/IEC 18000-6C EPC Class1 Gen2 (UHF) / ISO14443A (HF)
Material: PET / Paper with adhesive backing
Dimensions: 100 × 40 mm, 110 × 45 mm or customizable
Read Range: Up to 10+ meters (depending on reader and environment)
Operating Temperature: -20°C to +70°C
Typical Applications: Vehicle identification, parking access, toll collection, fleet management
Customization Options: Logo printing, barcode, chip type & encoding
Use Cases
Parking Access Control Systems
Automatic Toll Collection
Fleet Vehicle Tracking
Gated Community Vehicle Identification
Smart City Vehicle Management
Ordering Process
Requirement Discussion
Design and Printing Confirmation
Sample Production
Mass Production
Quality Inspection & Packaging
Fast Delivery
FAQ
Q1: Can the RFID windshield tags be reprogrammed?
A: Most tags are read-only once encoded, but custom writable options are available for specific applications.
Q2: What is the typical read range?
A: UHF tags can be read up to 10+ meters depending on reader power and environment. HF tags typically 10–15 cm.
Q3: Are the tags tamper-resistant?
A: Yes, once removed from the windshield, they are destroyed to prevent reuse.
Q4: Can we print our company logo on the tags?
A: Yes, we support custom printing and encoding.
Q5: Minimum order quantity?
A: Standard MOQ is 500 units; smaller sample orders can be negotiated.
